EK-2131

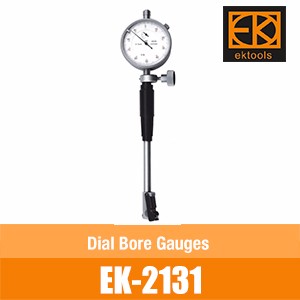

1. General description about ( New type) Dial Bore Gauge

With more than 20 years experiences in the field of tools industry, it’s our pleasure to provide you with high quality measuring tools.

As for Dial Bore Gauges, below are the main features of EK-2131:

1) For internal measurement

2) With protective cover

3) Hardened contact point

4) Changeable anvils for wide measuring range

5) With dial indicator included

As for Dial Bore Gauges, below are the data sheets of EK-2131:

Item No.	Range(mm)	Grad. (mm)	Meauring depth
EK-2131-06	6-10	0.01	40mm
EK-2131-10	10-18	0.01	100mm
EK-2131-18	18-35	0.01	130mm
EK-2131-35	35-50	0.01	150mm
EK-2131-50A	50-100	0.01	150mm
EK-2131-50B	50-160	0.01	150mm
EK-2131-100	100-160	0.01	150mm
EK-2131-160	160-250	0.01	400mm
EK-2131-250	250-450	0.01	400mm

2. Other product ranges of the same kind

Below are the dial indicator ranges of the same kind. If you want to know more details of one target type, please kindly contact us...All goods below can be provided with best quality and best price.
