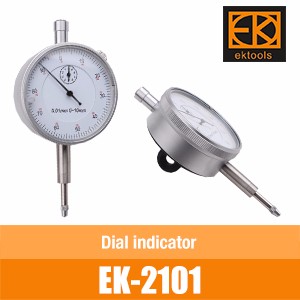

EK-2101

1. General description about dial indicator diameter gauge

With more than 20 years experiences in the field of tools industry, it’s our pleasure to provide you with high quality measuring tools.

As for dial indicator diameter gauge, below are the main features of EK-2101:

1) Inside parts are mainly made by stainless steel and copper

2) With dial locking screw

3) Metric/inch type

4) With dial locking screw and dial diameter:57mm

As for dial indicator diameter gauge, below are the data sheets of EK-2101:

Item No.	Range(mm/inch)	Grad.(mm)	Accuracy (mm)
EK-2101A	0-10/0-0.4"	0.01/0.001"	±20μm/0.0015"
EK-2101B	0-0.25"	0.0005"	±0.001"
EK-2101C	0-3	0.01	±14μm
EK-2101D	0-5	0.01	±16μm
EK-2101E	0-10	0.01	±20μm

2. Other product ranges of the same kind

Below are the dial indicator ranges of the same kind. If you want to know more details of one target type, please kindly contact us...All goods below can be provided with best quality and best price.
