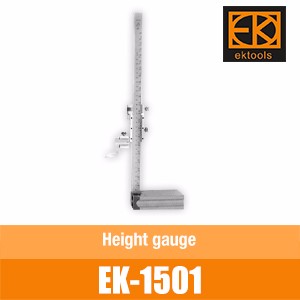

EK-1501

1. General description about height caliper

With more than 20 years experiences in the field of tools industry, it’s our pleasure to provide you with high quality measuring tools.

As for height caliper, below are the main features of EK-1501:

1) Made of stainless steel or carton steel

2) For height measurement and scribing

3) With carbide tipped scriber

4) With fine adjustment

As for height caliper, below are the data sheets of EK-1501:

Item No.	Item No.	Range(mm)	Grad.(mm)	Accuracy(mm)
(Stainless Steel)	(Carbon Steel)	Range(mm)	Grad.(mm)	Accuracy(mm)
EK-1501-S200	EK-1501-C200	0-200/8"	0.02/0.05	±0.03
EK-1501-S300	EK-1501-C300	0-300/12"	0.02/0.05	±0.04
EK-1501-S500	EK-1501-C500	0-500/20"	0.02/0.05	±0.05
EK-1501-S600	EK-1501-C600	0-600/24"	0.02/0.05	±0.07
EK-1501-S1000	EK-1501-C1000	0-800/40"	0.02/0.05	±0.07

2. Other product ranges of the same kind

Below are the height gauge ranges of the same kind. If you want to know more details of one target type, please kindly contact us...All goods below can be provided with best quality and best price.
