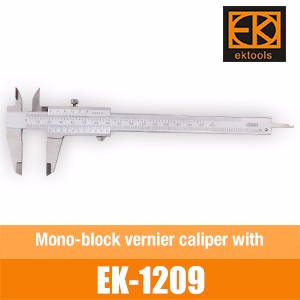

1. General description about marking vernier calipers
With more than 20 years experiences in the field of tools industry, it’s our pleasure to provide you with high quality measuring tools.
As for marking vernier calipers, below are the main features:
1) Made of stainless steel or carbon steel
2) Four way measurement(OD,ID,Step,Depth)
3) Main scale and vernier scale are chrome plated
4) Heat-treated main scale and hardened measuring plane
5) Special requirements can be customized
| Item No. | Item No. | Range(mm) | Grad.(mm) | Accuracy(mm) |
| (Stainless Steel) | (Carbon Steel) | |||
| EK-1209-S150A | EK-1209-C150A | 0-150 | 0.05 | ±0.05 |
| EK-1209-S200A | EK-1209-C200A | 0-200 | 0.05 | ±0.05 |
| EK-1209-S300A | EK-1209-C300A | 0-300 | 0.05 | ±0.06 |
| EK-1209-S150B | EK-1209-C150B | 0-150 | 0.02 | ±0.02 |
| EK-1209-S200B | EK-1209-C200B | 0-200 | 0.02 | ±0.02 |
| EK-1209-S300B | EK-1209-C300B | 0-300 | 0.02 | ±0.04 |
| EK-1209-S150C | EK-1209-C150C | 0-150/6" | 1/128" | ±0.05 |
| EK-1209-S200C | EK-1209-C200C | 0-200/8" | 1/128" | ±0.05 |
| EK-1209-S300C | EK-1209-C300C | 0-300/12" | 1/128" | ±0.06 |
| EK-1209-S150D | EK-1209-C150D | 0-150/6" | 1/1000" | ±0.02 |
| EK-1209-S200D | EK-1209-C200D | 0-200/8" | %
